Everpure Insurice i4000 Systems: The Complete Guide for Commercial Ice Machines

As an authorised Everpure distributor supplying, installing, and maintaining commercial water filtration systems across the UK and GCC, Sovereign Water works with the Insurice i4000 range daily. We understand exactly where these systems excel, how to specify them correctly for high-output ice machines, and what operators need to know to get the most from every cartridge.

For any commercial operation relying on a high-capacity ice machine, water quality is not a secondary concern — it is the single most important factor determining ice clarity, taste, machine longevity, and running costs. The Everpure Insurice i4000 System is Pentair’s answer to the demanding filtration requirements of large-volume ice production, offering triple or quad cartridge configurations with 0.5-micron Micro-Pure II filtration and built-in scale inhibition. This guide covers everything you need to know: specifications, configurations, how the i4000 compares to the i2000, and why sourcing through Sovereign Water’s Everpure division gives you a complete supply, installation, and maintenance solution rather than just a product purchase.

What Is the Everpure Insurice i4000 System?

The Everpure Insurice i4000 is a multi-cartridge commercial ice machine filtration system engineered by Pentair for high-volume ice production environments, including hotels, hospitals, stadiums, large restaurants, and contract catering operations. It uses three or four i4000 filter cartridges, each rated to 12,000 gallons, in a single manifold assembly that provides up to 36,000 gallons of total filtered water capacity before servicing is required.

The Insurice range is specifically designed around the needs of commercial ice machines rather than general-purpose drinking water or food service applications. Where a standard water filter reduces chlorine and particulates for taste improvement, an Insurice system combines that capability with scale inhibition technology targeted at protecting ice machine evaporator plates, water distribution systems, and harvest components. The i4000 extends this protection to the heaviest-demand ice production applications, covering cuber machines producing up to 1,900 lbs of ice per day and flaker machines producing up to 3,500 lbs per day.

Sovereign Water specifies the Insurice i4000 for clients operating large-scale hospitality, healthcare, and food production facilities where ice demand is continuous and machine downtime is genuinely costly. For smaller operations, the Insurice i2000 remains appropriate; the choice between the two depends primarily on ice machine output capacity and the water quality conditions on site.

Technical Specifications and System Configurations

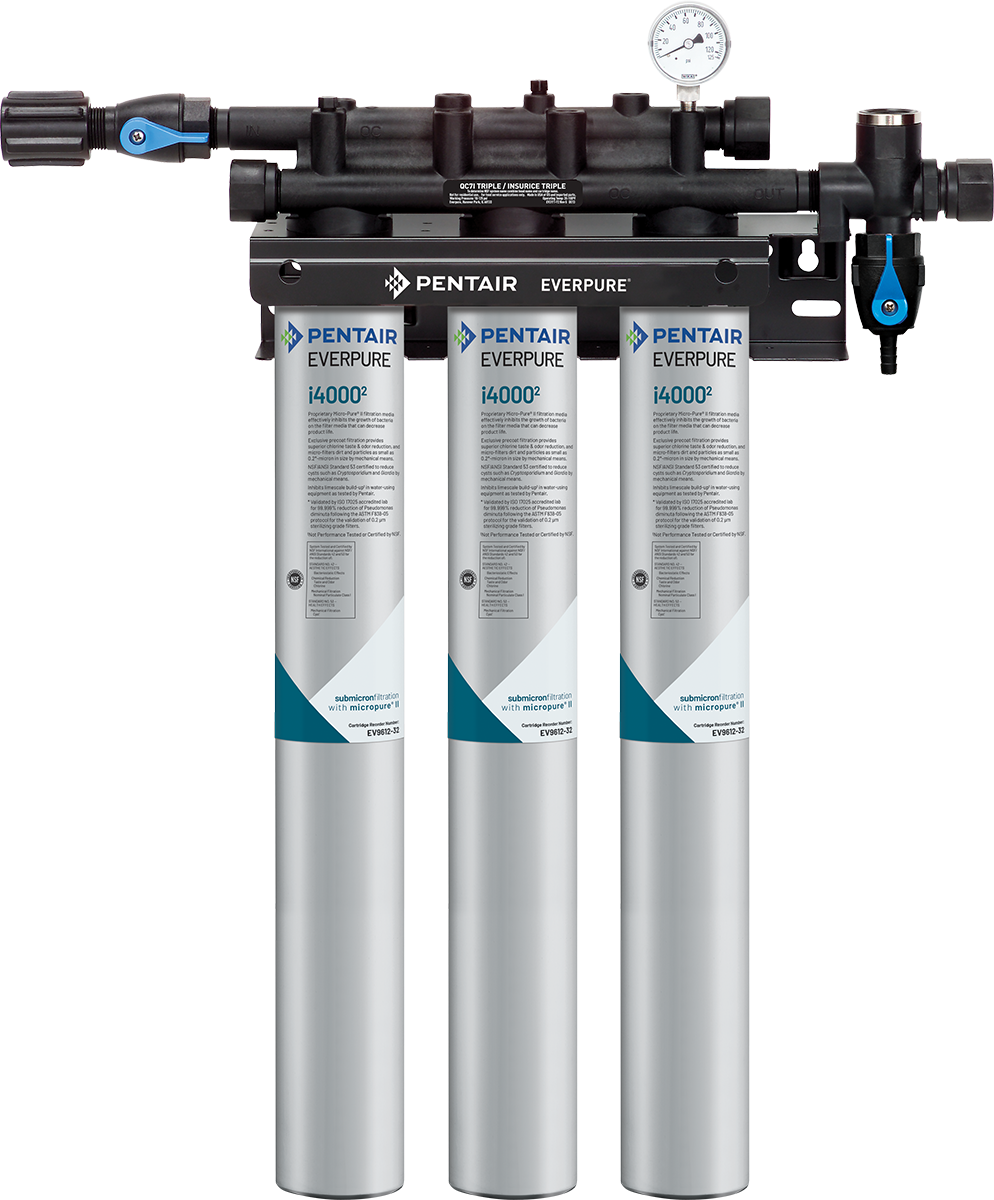

The Everpure Insurice i4000 System is available in Triple and Quad configurations, each using multiple i4000 cartridges mounted on a single manifold. The Triple configuration (model EV9325-03) uses three cartridges to deliver a rated system capacity of 36,000 gallons at a service flow rate of 5.0 to 6.7 gallons per minute (GPM), making it suitable for the majority of high-volume commercial ice machines in hotel, restaurant, and healthcare settings.

Key Technical Specifications

The following specifications apply to the Everpure Insurice i4000 Triple system, which is the most commonly specified configuration for commercial operators in the UK:

• Rated capacity: 36,000 gallons per set of cartridges (3 x 12,000-gallon i4000 cartridges)
• Service flow rate: 5.0 to 6.7 GPM
• Filtration level: 0.5 microns (Micro-Pure II media)
• Scale inhibition: Self-contained inhibitor within each cartridge
• NSF certification: NSF/ANSI Standard 42 (aesthetic effects) and Standard 53 (health effects, including cyst reduction)
• Compatible ice machine types: Cubers up to 1,500-1,900 lbs/day; flakers up to 1,300-3,500 lbs/day
• Warranty: 2-year limited warranty on manifold assembly
• Manifold features: Integrated water shut-off valve, flushing valve, and pressure gauge

According to Pentair’s official product documentation, the Insurice i4000 system delivers a rated capacity of 36,000 gallons at service flow rates of 5.0 to 6.7 GPM, with 0.5-micron Micro-Pure II filtration and integrated scale inhibition across all cartridges.

NSF Certification: What It Means in Practice

NSF/ANSI Standard 42 certification confirms the system reduces chlorine taste and odour, sediment, and other aesthetic contaminants that affect ice taste and appearance. NSF/ANSI Standard 53 certification goes further, confirming the system reduces health-related contaminants including Cryptosporidium and Giardia cysts to below detectable levels at 0.5-micron filtration. For UK operators, this dual certification is important for compliance documentation and, in healthcare and food production settings, for meeting due diligence requirements under food safety legislation.

Micro-Pure II Filtration Technology Explained

Micro-Pure II is Everpure’s proprietary filter media technology that combines mechanical filtration at 0.5 microns with an antimicrobial treatment to inhibit the growth of bacteria within the filter cartridge itself. This is the core technology that sets Everpure Insurice systems apart from basic sediment or carbon block filters and makes them the preferred choice of foodservice equipment manufacturers and commercial operators worldwide.

At 0.5 microns, Micro-Pure II removes particles, cysts, and contaminants that are invisible to the human eye but have a measurable impact on ice quality and machine performance. Standard 5-micron sediment filters, which are common in basic commercial water treatment setups, allow a significant proportion of these finer particles to pass through. Those particles then accumulate on the ice machine’s evaporator plates and water distribution nozzles, contributing to scale, biofilm formation, and eventual mechanical failure.

Bacteria Inhibition Within the Cartridge

A commonly overlooked risk in commercial water filtration is bacteria growth within the filter media itself. Organic material trapped in the filter can become a growth medium for bacteria if the cartridge is left in service beyond its rated capacity. Micro-Pure II media contains an antimicrobial treatment that inhibits bacterial growth within the cartridge, reducing this risk and maintaining filtration performance throughout the cartridge’s service life. This is particularly relevant for ice machines, where ice is consumed directly and hygiene standards are subject to audit under food safety regulations.

Impact on Ice Quality

Clean, filtered water produces clearer, denser ice cubes with no off-flavours or odours. Chlorine, which is present in UK mains water at levels typically between 0.1 and 1.0 mg/L, affects both the taste of ice and the taste of drinks served over it. The Micro-Pure II carbon block removes chlorine taste and odour to below detectable levels, ensuring that ice served in drinks does not contaminate the flavour profile of coffee, cocktails, soft drinks, or water.

Scale Inhibition and Ice Machine Protection

Scale inhibition is, for most UK operators, the single most commercially important function of the Everpure Insurice i4000. The UK has predominantly hard water, with large parts of the South East, Midlands, and East of England recording water hardness levels above 300 mg/L as calcium carbonate. When hard water is used in an ice machine, minerals precipitate as scale on evaporator plates, harvest systems, and water distribution components. This scale reduces cooling efficiency, extends cycle times, increases energy consumption, and ultimately causes mechanical failure.

The Insurice i4000’s self-contained scale inhibitor treats water passing through the cartridge with a food-grade polyphosphate compound that holds calcium and magnesium in solution, preventing them from precipitating onto metal surfaces. This does not remove hardness minerals from the water, but it prevents them from causing scale damage within the ice machine. The result is a machine that operates at its designed efficiency throughout its service life, rather than one that gradually degrades as scale accumulates.

Independent testing reported by Fresh Water Systems indicates that proper ice machine filtration with Everpure Insurice systems can increase ice production by up to 30% and reduce energy consumption (kWh per pound of ice) by up to 30%, compared to unfiltered or inadequately filtered installations.

The Real Cost of Scale in a Commercial Ice Machine

Scale damage in commercial ice machines is not always dramatic or sudden. In most cases, it manifests gradually as longer harvest cycles, reduced ice output, and higher electricity bills before culminating in a compressor failure or evaporator plate replacement. A commercial ice machine capable of producing 1,000 lbs of ice per day may cost between £3,000 and £12,000 to purchase. An evaporator plate replacement alone can cost £800 to £2,000 in parts and labour. Against these figures, the cost of an Insurice i4000 filtration system and annual cartridge replacement is a straightforward investment in equipment protection. Sovereign Water’s Smart Maintenance programme can include scheduled cartridge replacement to ensure protection is never interrupted by an overdue service.

Everpure Insurice i4000 vs i2000: Which System Do You Need?

The key difference between the Everpure Insurice i4000 and i2000 lies in cartridge capacity and ice machine output compatibility. The i4000 cartridge is rated to 12,000 gallons per cartridge, compared to 9,000 gallons for the i2000 cartridge. In a triple configuration, this means the i4000 system delivers 36,000 gallons before servicing, compared to 27,000 gallons for an equivalent i2000 triple system. For a high-output ice machine, this translates directly to longer intervals between cartridge changes and lower annual servicing costs per gallon of filtered water.

Ice Machine Output Compatibility

The i2000 range is designed for ice machines producing up to approximately 1,000 lbs of ice per day. The i4000 range extends coverage to cuber machines producing up to 1,900 lbs/day and flaker machines producing up to 3,500 lbs/day. This is the primary specification criterion: if your ice machine exceeds the i2000 compatibility range, the i4000 is the correct system. Using an i2000 on a high-output machine shortens cartridge life disproportionately and may leave the machine inadequately protected between service visits.

When to Upgrade from i2000 to i4000

Operators should consider upgrading from the Insurice i2000 to the i4000 in the following circumstances:

• The ice machine has been upgraded to a higher-output model that exceeds i2000 compatibility ratings
• Cartridge replacement intervals are shorter than 12 months, indicating the i2000 capacity is being exhausted too quickly
• The site has particularly hard water (above 250 mg/L), which depletes scale inhibitor capacity faster
• Operations have expanded, increasing daily ice demand substantially

Sovereign Water can assess your current filtration setup, review water quality data for your site, and recommend the correct Insurice system for your application. Contact our team for a no-obligation water quality assessment.

Installation, Cartridge Replacement, and Service Intervals

The Everpure Insurice i4000 manifold assembly is designed for professional installation by a qualified water treatment technician. The manifold includes an integrated water shut-off valve, a flushing valve for cartridge changeover, and a pressure gauge that allows ongoing monitoring of system performance. These features make routine maintenance straightforward, but correct initial installation, including adequate supply pressure, appropriate pre-filters where required, and correct positioning relative to the ice machine, requires specialist knowledge of both the Everpure product range and commercial plumbing regulations.

Cartridge Replacement and Flushing Procedure

Everpure i4000 cartridges use a sanitary quick-change design that allows cartridges to be replaced without tools and without contact with the filter media. The shut-off valve closes water flow during replacement, and the flushing valve is used to purge air from the new cartridges before the system is returned to service. The entire changeover process, when performed by a trained technician, takes under 30 minutes including system flush and pressure check. Sovereign Water includes cartridge replacement within its Smart Maintenance service contracts, eliminating the need for in-house staff to manage the process.

Service Intervals and Capacity Management

Cartridge service life is determined by whichever limit is reached first: the rated gallon capacity (12,000 gallons per cartridge, 36,000 gallons for a Triple system) or a 12-month calendar interval, regardless of throughput. The 12-month interval exists because the antimicrobial treatment in Micro-Pure II media has a finite active life, and because polyphosphate scale inhibitor effectiveness can diminish over time even at low usage volumes. In high-throughput environments, capacity may be reached before 12 months, requiring more frequent cartridge replacement. Sovereign Water monitors this through Smart Maintenance tracking, ensuring cartridges are replaced when protection is genuinely required rather than on an arbitrary schedule.

Why Source Your Everpure i4000 Through Sovereign Water?

Sovereign Water is an authorised Everpure distributor, supplying, installing, and maintaining Insurice systems for commercial operators across the UK and GCC region. Purchasing an Everpure system through an authorised distributor rather than a general trade supplier is not merely a matter of preference: it determines whether you receive a supported installation, warranty protection backed by the manufacturer, and access to genuine Everpure consumables throughout the system’s service life.

As an authorised partner, Sovereign Water provides site surveys to confirm the correct Insurice specification before any equipment is ordered. This includes water quality assessment (hardness, chlorine levels, Total Dissolved Solids (TDS), and sediment), ice machine compatibility confirmation, inlet pressure measurement, and pre-filter requirements. Operators who purchase systems online without this assessment frequently encounter specification errors that result in undersized filtration, voided warranties, or inadequate scale protection.

End-to-End Support Through Smart Maintenance

Beyond initial installation, Sovereign Water’s Smart Maintenance programme provides scheduled cartridge replacement, system performance checks, and access to our technical support team for the duration of the service contract. For operators with multiple sites or large-format ice machines running continuously, this proactive approach to maintenance is far more reliable than reactive replacement once problems become apparent. Our team works with hotels, hospitals, contract caterers, and large food production facilities across the UK, and we understand the operational implications of ice machine downtime in each of those environments.

If you are specifying an Everpure Insurice i4000 for a new installation, upgrading from an i2000 system, or reviewing the filtration arrangements for an existing ice machine, our team is available to provide technical guidance without obligation. Visit our contact page to arrange a consultation or request a site survey.

Frequently Asked Questions

What is the rated capacity of the Everpure Insurice i4000 Triple system?

The Everpure Insurice i4000 Triple system has a rated capacity of 36,000 gallons, using three i4000 cartridges each rated at 12,000 gallons. Service flow rate is 5.0 to 6.7 GPM. Cartridges should be replaced when capacity is reached or after 12 months, whichever comes first, to maintain full filtration and scale inhibition performance.

What is the difference between the Everpure Insurice i4000 and i2000?

The i4000 has a higher cartridge capacity (12,000 gallons per cartridge vs 9,000 gallons for the i2000) and is compatible with larger ice machines, including cubers up to 1,900 lbs/day and flakers up to 3,500 lbs/day. The i2000 is designed for smaller machines up to approximately 1,000 lbs/day. Choosing the correct system depends on your ice machine’s output rating and your site’s water quality.

Does the Everpure Insurice i4000 remove scale from hard water?

The i4000’s built-in scale inhibitor does not remove hardness minerals from the water. Instead, it holds calcium and magnesium in solution using a polyphosphate compound, preventing them from precipitating as scale on evaporator plates and ice machine components. For very hard water sites above 400 mg/L, additional upstream softening may be advisable; Sovereign Water can assess this during a site survey.

Is the Everpure Insurice i4000 NSF certified?

Yes. The Everpure Insurice i4000 system holds NSF/ANSI Standard 42 certification (aesthetic effects, including chlorine taste and odour reduction) and NSF/ANSI Standard 53 certification (health effects, including reduction of Cryptosporidium and Giardia cysts at 0.5-micron filtration). These certifications are relevant for food safety compliance and due diligence documentation in commercial foodservice settings.

Can Sovereign Water supply and install the Everpure Insurice i4000 in the UK?

Yes. Sovereign Water is an authorised Everpure distributor providing supply, professional installation, and ongoing maintenance for the full Insurice range across the UK. Our Smart Maintenance contracts include scheduled cartridge replacement and performance monitoring, ensuring your ice machine filtration remains effective without requiring in-house management of service intervals.
