As an authorised Everpure distributor, Sovereign Water supplies, installs, and maintains Insurice filtration systems in commercial kitchens, hospitality venues, and foodservice operations across the UK. Our hands-on experience with these systems in the field means we can advise not just on specification, but on the real-world performance that matters most to your operation.
A commercial ice machine works harder than most people realise. It draws from mains water, cycles it through refrigeration equipment, and outputs hundreds of pounds of ice per day. That same water, however, carries dissolved minerals, sediment, and biological matter that gradually degrade efficiency, damage evaporator plates, and reduce ice quality. The Everpure Insurice 4Si system is designed to address all of these challenges simultaneously. If you manage or specify ice production for a commercial operation, this guide explains how the 4Si works, what it protects, and how Sovereign Water supports your commercial water filtration from day one.
In This Article
- What Is the Everpure Insurice 4Si System?
- How 4Si Scale Inhibition Protects Your Ice Machine
- Filtration Performance: What the 4Si Removes
- Sizing and Compatibility: Which Ice Machines Does the 4Si Support?
- Installation, Cartridge Maintenance, and Ongoing Support
- Frequently Asked Questions

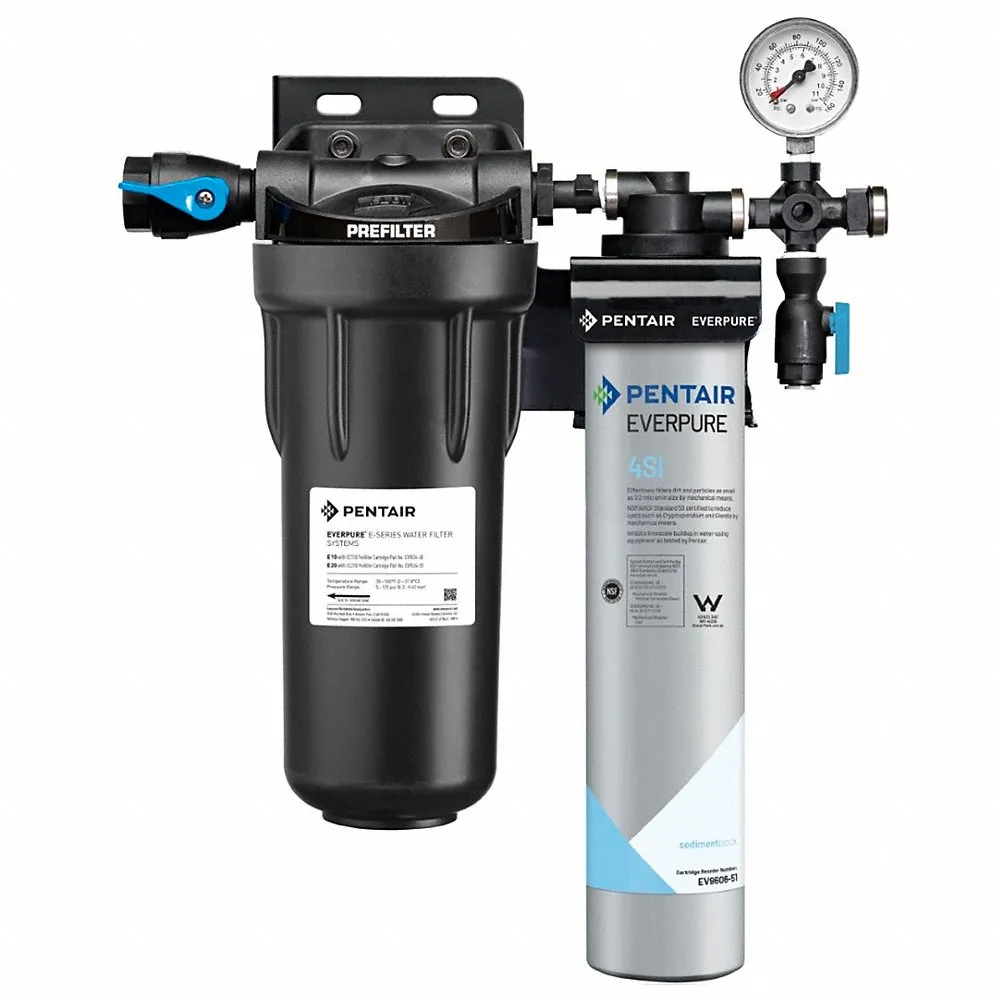

What Is the Everpure Insurice 4Si System?
The Everpure Insurice 4Si is a commercial water filtration system developed by Pentair Everpure, combining 0.5-micron depth filtration with a self-contained scale inhibitor in a single compact unit. It is designed specifically for commercial ice machines, providing both particulate reduction and scale protection to maintain consistent ice quality and extend equipment life.
The system uses Everpure’s Fibredyne depth filtration media, which filters water to 0.5 microns and reduces dirt, sediment and microbial cysts such as Cryptosporidium and Giardia. The cartridge also contains a scale inhibitor, which is released into the water to help stop limescale forming on internal components.
The Insurice 4Si is certified to NSF/ANSI Standard 42 for particulate reduction and NSF/ANSI Standard 53 for cyst reduction. The quick-change cartridge design allows straightforward servicing without specialist tools. Sovereign Water specifies the correct configuration for each application based on ice machine output and local water quality.
How 4Si Scale Inhibition Protects Your Ice Machine
The 4Si cartridge releases a scale inhibitor into the incoming water supply. This inhibitor interrupts the crystallisation of calcium and magnesium minerals, preventing them from bonding to metal surfaces and forming the hard limescale deposits that commonly damage evaporator plates, water distribution systems, and pumps in commercial ice machines.
Limescale is one of the most costly and persistent problems affecting commercial ice equipment. When dissolved calcium and magnesium minerals in mains water are exposed to the refrigeration cycle, they precipitate out of solution and coat internal surfaces. On evaporator plates, this acts as an insulating layer, forcing the compressor to work harder to achieve the same cooling effect and increasing energy consumption. Over time, scale accumulation causes mechanical damage that requires costly engineering interventions and can ultimately shorten the working life of the machine.
Pentair’s specification sheet for the Insurice Single 4SI states that it “reduces ice machine maintenance, service costs and downtime caused by scale buildup”.
The 4Si system addresses scale at source. By treating the water before it enters the machine, scale inhibition prevents the problem entirely rather than managing its consequences. This is particularly valuable in areas with hard water, where dissolved mineral concentrations in the mains supply are elevated. Sovereign Water specifies for your supply on every filtration installation, allowing us to confirm that the 4Si specification is appropriate for local water conditions and whether any additional upstream treatment is required.
Filtration Performance: What the 4Si Removes
The Everpure Insurice 4Si filters water to 0.5 microns using Fibredyne depth filtration media, reducing sediment, dirt particles and microbial cysts such as Cryptosporidium and Giardia. Critically, the system is engineered to retain chlorine and chloramines in the filtered water, which continues to inhibit bacterial growth and biological slime formation inside the ice machine and storage bin.
Pentair describes the system as one that “effectively filters particulates to 0.5 microns and provides bacterial growth, slime, and scale reduction” (Pentair Everpure).
This retention of disinfection residuals is an important design choice. Many water filters remove chlorine as a matter of course, which can improve taste but leaves downstream equipment vulnerable to microbial colonisation. The Insurice 4Si is engineered to strike the right balance: removing the contaminants that affect ice quality and equipment longevity, whilst preserving the protective function of chlorination within the water distribution pathway. Pentair also states that its 4SI and 7SI cartridges meet ASHRAE Standard 188P, a US standard on preventing bacteria from entering or growing in hospital water systems. In the UK, Legionella control is governed by the HSE’s Approved Code of Practice L8.
For foodservice operators, clearer ice is not merely an aesthetic consideration. Cloudy or off-tasting ice can affect the flavour profile of drinks, raise concerns with customers, and indicate underlying water quality issues that affect other kitchen equipment. The Insurice 4Si’s depth filtration media provides superior dirt-holding capacity compared with surface filtration alternatives, meaning it maintains consistent flow rates for longer between cartridge changes.
Sizing and Compatibility: Which Ice Machines Does the 4Si Support?
The Everpure Insurice 4Si single system is rated for commercial ice cubers producing up to 500 lbs (approximately 227 kg) per day, and flakers producing up to 1,500 lbs (approximately 680 kg) per day. It delivers a service flow rate of 2.0 gallons per minute (7.57 litres per minute), with a rated capacity of 15,000 gallons (56,700 litres) per cartridge.
For higher-volume applications, Everpure offers twin and triple Insurice systems based on the larger 7SI cartridge. The 4Si system operates within a pressure range of 10 to 125 PSI (0.7 to 8.6 bar), which is compatible with the majority of UK mains water supplies. Sovereign Water verifies inlet pressure as part of every installation to ensure the system operates within specification.
For operators seeking to improve ice production efficiency, Everpure also offers the ChillTech heat exchanger, which pre-cools incoming water before it reaches the ice machine. We can advise on whether it suits your application as part of a full system specification review.
In terms of physical footprint, the Insurice 4Si single unit measures approximately 460mm high by 201mm wide by 133mm deep, with an operating weight of about 3.2 kg. It uses 3/8-inch inlet and outlet connections, and no electrical supply is required. These dimensions make it practical for under-counter or adjacent wall mounting in most commercial ice machine installations.
Installation, Cartridge Maintenance, and Ongoing Support
Everpure Insurice 4Si systems use a sanitary quick-change cartridge design that allows filter replacement without tools or direct contact with the used media. Cartridges should be replaced every six months or when the rated capacity of 15,000 gallons is reached, whichever comes first. Professional installation by a qualified water treatment technician ensures the system is correctly positioned, commissioned, and performing within specification from the outset.
Correct installation location is important. The filter should be fitted on the cold water supply line feeding the ice machine, upstream of any inlet valves, in a location that permits straightforward cartridge access. The system should be protected from ambient temperatures below 2°C or above 38°C, which is the operating temperature range in Pentair’s specification sheet. All Sovereign Water installations include a full commissioning process: inlet pressure is checked, the system is flushed to clear any manufacturing residuals, and initial flow rate is verified before the machine is returned to service.
Cartridge replacement is a maintenance task that is easily overlooked in a busy commercial kitchen. An exhausted filter provides no ongoing protection, and a partially blocked cartridge can restrict flow to the ice machine, reducing both output volume and ice quality. Sovereign Water’s planned maintenance service manages cartridge replacement scheduling based on actual usage and service intervals, ensuring filters are changed at the right time without requiring you to track it manually. For multi-site operators, this removes a significant administrative burden whilst maintaining consistent protection across every location.
If you are replacing an existing filter system or upgrading from a non-specific inline filter, Sovereign Water can assess your current setup, confirm that the 4Si is the correct specification, and carry out a clean changeover with minimal disruption to your ice production.
Frequently Asked Questions
What does the Everpure Insurice 4Si filter out?
The Insurice 4Si removes particulates down to 0.5 microns, including sediment, dirt and microbial cysts such as Cryptosporidium and Giardia. It leaves chlorine and chloramines in the water to inhibit bacterial growth and slime inside the ice machine and storage bin.
How often does the Insurice 4Si cartridge need replacing?
Cartridges should be replaced every six months or when the rated capacity of 15,000 gallons (56,700 litres) is reached, whichever comes first. Regular replacement is essential to maintain filtration effectiveness and consistent flow to the ice machine. Sovereign Water’s planned maintenance service can schedule these changes for you.
Is the Everpure Insurice 4Si certified to NSF standards?
Yes. The Insurice 4Si is certified to NSF/ANSI Standard 42 for particulate reduction (Class I) and NSF/ANSI Standard 53 for cyst reduction. These certifications confirm the system meets independently verified performance requirements for use in commercial foodservice environments.
Which commercial ice machines is the 4Si compatible with?
The 4Si single system is designed for ice cubers producing up to 500 lbs per day and flakers up to 1,500 lbs per day. For higher volumes, Everpure offers twin and triple Insurice systems based on the 7SI cartridge. It is compatible with most commercial ice machine brands that operate within a water pressure range of 10 to 125 PSI.
How does Sovereign Water support Everpure Insurice installations?
As an authorised Everpure distributor, Sovereign Water supplies, installs, and maintains Insurice systems across the UK. We specify the right treatment for your supply, carry out professional commissioning, and provide ongoing filter cartridge replacement through our planned maintenance service. Contact us to discuss your requirements.
Download the datasheet: EV9324-61 Insurice Single PF 4SI spec sheet
Ready to Protect Your Commercial Ice Machine?
Sovereign Water is an authorised Everpure distributor serving foodservice, hospitality, and commercial operations across the UK. From specification through to professional installation and planned maintenance, we deliver end-to-end Insurice 4Si solutions tailored to your operation.
