How does a water softener system work, and is it worth having? Commercial water softeners protect the equipment behind a hotel kitchen, a care home laundry or a plant room boiler by taking out the calcium and magnesium that turn into limescale when water is heated. This guide explains how the system works, where it helps and where it does not, and how to specify one for a UK site. It is written for facilities managers, head chefs, engineers and buyers. It does not replace a site survey or water analysis. The Water Fittings Regulations cited below apply in England and Wales, with separate regimes in Scotland and Northern Ireland.
TL;DR
- A softener swaps calcium and magnesium for sodium on a bed of resin. It does not reduce total dissolved solids.
- Size it on measured hardness, daily volume, peak flow and the time available to regenerate.
- Choose a twin set-up only where soft water must never stop. Otherwise a single vessel that regenerates overnight is usually enough.
- Keep one unsoftened drinking water tap. Softening adds sodium, and tap water has a legal sodium limit.
- Settle drainage, backflow protection, approvals and the manufacturer's water limits before you order.
Want a specification drawn up from your equipment list? Request a Quote.
Contents
- How does a water softener system work?
- What happens during regeneration
- Where softening helps, and where it does not
- The specification inputs that matter
- Worked sizing logic
- Single vessel or alternating twin
- Installation and Water Fittings compliance
- Drinking-water branch and sodium
- Product examples
- Commissioning and handover
- Maintenance and operation
- Procurement checklist
- Comparison table
- Frequently asked questions
- Sources
How does a water softener system work?
Hardness is dissolved calcium and magnesium, quoted as milligrams per litre of calcium carbonate (mg/l CaCO3). Heat drives those minerals out of the water and onto the hottest surface they can find, which is how a heating element ends up wearing a crust.
A softener stops that by passing incoming water through a vessel of ion exchange resin. The resin beads are loaded with sodium. As hard water flows through, the beads hold on to calcium and magnesium and let go of sodium instead. The water leaving the vessel is soft.
The system has three parts. The control head holds the valve and the controller, and both the hard water inlet and the soft water outlet connect to it. The resin vessel does the exchange. The brine tank sits on the floor beside it and holds the salt that restores the resin. A drain runs from the control head to a floor drain, away from the soft water outlet.
Softening is not general purification. It does not prove water is safe to drink, and it does not fix sediment, discolouration, taste, odour or corrosion. A scale conditioner that leaves hardness in the water does not produce softened water. Our TDS and PPM guide explains how hardness sits alongside the other numbers on a water report.
What happens during regeneration
The beads fill up. To restore them, the control valve runs a regeneration. Salt is the fuel, and the spent brine goes to drain. That is why every softener needs a drain, a salt supply and a power point.
A typical cycle has four stages:
| Stage | What happens |
|---|---|
| Backwash | Water flows upwards through the bed to loosen it and flush out dirt |
| Brine and slow rinse | Brine is drawn through the resin, pushing calcium and magnesium off and putting sodium back, then slow rinse water carries it through |
| Fast rinse | Fresh water packs the bed down and flushes out the last of the brine |
| Refill | The brine tank refills with water for next time |
Order and timings vary by valve. A single vessel stops delivering soft water while it regenerates, so it is normally set to run overnight.
Where softening helps, and where it does not
| Equipment | Does a softener help? | Note |
|---|---|---|
| Dishwashers and glasswashers | Yes, against scale | Spot-free glass on high-TDS water may also need reverse osmosis |
| Boilers, combi ovens, steamers | Yes | Follow the manufacturer's feed water limits |
| Hot water cylinders and calorifiers | Yes | Protects coils and elements |
| Laundry | Yes | Soft water lets detergent work as designed |
| Coffee machines | Partly | Coffee wants controlled hardness and alkalinity, not zero hardness |
| Ice machines | Rarely on its own | Usually filtration chosen for the machine |
| Drinking water taps | No | Keep these on unsoftened mains |
For drinks, the better route is usually a filter or reverse osmosis system matched to the machine, with a softener upstream only where the equipment calls for it. Our guide to scale prevention in a commercial dishwasher covers the warewashing side in more depth. See the commercial treatment overview for other treatment routes.
Much of England has hard water. Thames Water says all the water in its region is hard. Scotland, Wales and much of the north and west are softer. Your water company publishes hardness by postcode, but a figure for the area is not a figure for your pipe. Get a reading taken where the softener will be fitted, after any storage tank.
The specification inputs that matter
A credible enquiry covers the following.
| Input | What to record |
|---|---|
| Incoming water quality | Total hardness in mg/l as CaCO3, test date, sampling point and the outlet or blended hardness you need |
| Volume | Typical and maximum 24-hour use from meter data, allowing for seasons |
| Flow | The busiest short flow and any sustained demand, with simultaneous users listed |
| Pressure | Static and dynamic inlet pressure near the connection, and the pressure loss at the real design flow |
| Operating pattern | Service hours, the regeneration window, whether a hard water bypass is acceptable and what losing soft water costs |
| Site conditions | Pipe size, footprint, drain capacity, electrical supply, floor loading, salt delivery route and service access |
The design record should show measured hardness, daily volume, peak and continuous flow, pressure loss, regeneration window and required continuity.
Worked sizing logic
This example explains the logic. It is not a final design or product recommendation.
Assume a site uses 12 m3 of softened water on a busy day at 280 mg/l CaCO3 hardness:
12 m3/day × 280 g/m3 = 3,360 g CaCO3/day
Divide the supplier's validated usable capacity at the chosen salt dose by 3,360 g/day to estimate the days between regenerations. Then apply the documented reserve and controller settings. Vessel size alone does not establish capacity.
Next test the hydraulic duty. If the short peak is 3.2 m3/h and 2.0 m3/h may continue for several hours, the system must pass both within acceptable pressure loss. A maximum flow that causes too much pressure drop at minimum dynamic pressure is unsuitable.
Then test timing. When will regeneration start, how long will it take and can the site tolerate it? An undersized unit regenerates too often, runs out mid-service and lets hard water through when the kitchen can least afford it. If scale spots appear at peak times, suspect the softener first.
Single vessel or alternating twin
A single vessel suits bounded demand with a reliable regeneration period. It cannot normally deliver soft water while it regenerates, so the site gets interrupted flow or hard water through a bypass. Agree that behaviour before selection.
An alternating twin keeps one vessel in service while the other regenerates or stands by. Soft water never stops. It adds equipment, footprint and maintenance, so it is a continuity option, not an automatic upgrade. Hotels, hospitals and kitchens that trade late usually need one.
The Regal Twin 3672 is a current 24/7 commercial example, published at 18.2 m3/h service flow at a 1 bar drop. Define how the vessels alternate, whether both run at peak, what happens after power loss and whether either can be isolated.
Installation and Water Fittings compliance
In England and Wales, Regulation 4 of the Water Supply (Water Fittings) Regulations 1999 requires water fittings to be of appropriate quality and standard, suitable for their circumstances, compliant with applicable Schedule 2 requirements and installed in a workmanlike manner. Product approval does not replace compliant design and installation.
WRAS approval is one recognised route to evidence product compliance. It is not itself the law. Confirm the exact model, listing scope, expiry and provisos, then assess the complete installation separately. Regulation 5 covers treatment units that discharge wastewater or use water for regeneration. Notify the water undertaker before work starts. Work must not begin without consent, although consent is deemed granted if the undertaker gives no notice within ten working days. The approved-contractor exemption does not cover this category.
The installation specification should cover:
- accessible isolation valves, controlled bypass and sampling points before and after treatment;
- pressure control where required;
- a trapped foul-drain connection with the required visible air break, sized for peak regeneration flow, plus a safe brine-overflow route;
- backflow protection appropriate to the assessed fluid category;
- electrical isolation, safe cable routing and protection from frost, heat, impact and flooding;
- clearance for valve removal, servicing and safe salt replenishment;
- pipe identification, valve labels and an updated schematic.
WRAS directory entries commonly require a type AA, AB or AD air gap under EN 1717. Verify the selected model's conditions. Confirm with the sewerage undertaker whether regenerant is trade effluent and obtain any required consent. Never discharge it to a surface-water drain.
Drinking-water branch and sodium
The Drinking Water Inspectorate (DWI) advises keeping an unsoftened kitchen tap for drinking and cooking. Ion exchange adds sodium, and in England sodium must not exceed 200 mg Na/L at consumers' taps.
Map the drinking, beverage, cooking and specialist outlets, including vending machines and tenant fit-outs. Mark the unsoftened branch on the schematic and verify it at commissioning. Clinical uses need separate assessment. If softened water is ever proposed for consumption, calculate sodium from the measured incoming sodium and the hardness removed, and verify wholesomeness at commissioning.
Product examples
These configurations show why selection needs site data. They are not a ranking.
Regal 250
The Regal 250 is a compact small-commercial option, published at up to 3 m3/h with up-flow proportional regeneration, about 100 litres per regeneration and a 130 kg salt store. Check capacity, pressure loss and timing against demand.
Regal 500
The Regal 500 uses a 10 x 54 inch tank and 125 litre brine tank. Published service flow is 6.12 m3/h at a 1 bar drop, within 2 to 6 bar. Confirm media and usable capacity for the water analysis.
Regal 750
The Regal 750 has 75 litres of resin and a 125 litre brine tank. Published duty is 3.5 m3/h operating, 4.3 m3/h peak and 15 m3 volume capacity. Check that volume against measured hardness and settings.

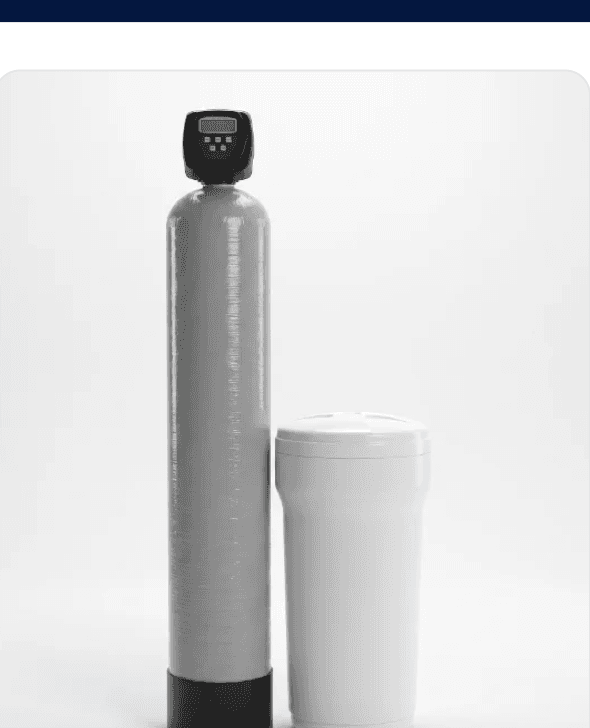

Commercial Softener RF1465SO1
The RF1465SO1 uses a 14 x 65 inch tank, CE 1 inch valve and 146 litre brine tank, with delayed, immediate or volume-based regeneration. Confirm capacity against the selected media, inlet analysis and salt setting.
Commissioning and handover
Verify bypass, hardness, dynamic pressure, leaks, drain flow, brine operation, metering, regeneration and the drinking-water branch. Record controller settings and alarms, and witness a regeneration where practicable. Handover should include the design basis, test results, approval evidence, schematic, manuals and service schedule, plus operator training.
Maintenance and operation
A softener is a consumables and service item as much as a machine. Salt needs topping up. Resin ages and can foul. Valves and seals wear. Brine lines can block. Follow the manufacturer's cleaning, salt and service instructions, and check salt, brine-tank condition, leaks, bridging and outlet hardness. The maintenance service can support scheduled visits, outlet hardness checks and a record of salt use. Ask who checks outlet hardness, how often, and what happens if the reading is out.
Procurement checklist
Require written confirmation of:
- inlet hardness test and required outlet or blended hardness;
- typical and maximum daily volume, plus peak and continuous flow;
- minimum dynamic and maximum inlet pressure;
- pressure loss at design flow;
- usable exchange capacity and calculation basis;
- regeneration frequency, duration, water and salt use, and service available during the cycle;
- single or alternating operating philosophy;
- vessel, valve, resin and brine-tank specification;
- footprint, height, loaded weight and service clearance;
- bypass, isolation, sampling, drainage, overflow and power requirements;
- unsoftened drinking and cooking branch;
- Regulation 4 evidence and exact approval provisos;
- installation scope, notification duties and commissioning tests;
- training, documents, consumables and planned maintenance.
Comparison table
| Option | Best suited to | Published duty | Continuity point | Specification caution |
|---|---|---|---|---|
| Regal 250 | Cafés, small restaurants and smaller commercial sites | Up to 3 m3/h; about 100 L water per regeneration | Up-flow proportional regeneration | Confirm capacity, pressure loss and regeneration time |
| Regal 500 | Laundries, hotels and hospitality | 6.12 m3/h at 1 bar drop; 125 L brine; 2 to 6 bar | Volume-based control options | A 1 bar drop may matter where pressure is limited |
| Regal 750 | Hospitality, hotels, healthcare and estates | 3.5 m3/h operating; 4.3 m3/h peak; 15 m3 published volume | Twin/duplex option available | Check published volume against hardness and settings |
| RF1465SO1 | Hospitality and facilities | 14 x 65 tank; CE 1 inch valve; 146 L brine tank | Delayed, immediate or volume-based regeneration | Confirm capacity for the selected media build |
| Regal Twin 3672 | Hotels, hospitals and continuity-critical 24/7 sites | 18.2 m3/h at 1 bar drop | Alternating twin duty | Confirm footprint, drain duty and site-specific need |
Frequently asked questions
How does a water softener work in simple terms?
Hard water passes through a vessel of resin beads loaded with sodium. The beads grab calcium and magnesium and release sodium, so the water leaving is soft. When the beads are full, a salt water wash restores them and the waste goes to drain.
Do all UK commercial kitchens need a softener?
No. It depends on the local hardness and what the equipment manufacturer requires. In a hard water area, most heated and warewashing equipment benefits from one.
Can a commercial softener be sized from the number of rooms or covers?
Only for an early estimate. Base selection on metered volume, simultaneous peak flow, measured hardness, pressure and operating hours. Room or cover counts can hide laundry, kitchen and occupancy peaks.
How often should a softener regenerate?
There is no universal interval. It depends on hardness load, usable capacity, reserve, water use and control mode. Predict it at typical and maximum demand, then confirm it from operating data. Very frequent regeneration or hard water at the tap suggests the unit is undersized or faulty.
Do we need a twin softener?
Consider one where soft water must stay available during regeneration or there is no reliable quiet window. A single vessel may suit predictable downtime. Document the effect of hard water or interruption before deciding.
Can softened water supply drinking taps?
The DWI advises keeping an unsoftened kitchen tap for drinking and cooking because ion exchange adds sodium. Map, label and test that branch at handover.
Can a softener replace reverse osmosis?
No. A softener removes hardness only. Reverse osmosis also reduces dissolved salts and is chosen where spotless glassware or controlled drinks water matters.
Does WRAS approval make the whole installation compliant?
No. Approval can support product selection, but Regulation 4 also covers suitability, applicable Schedule 2 requirements and workmanlike installation. Check the exact model, current approval and provisos, then assess the complete arrangement.
What should be tested at commissioning?
Inlet and outlet hardness, dynamic pressure, meter response, settings, bypass and isolation, brine draw and refill, regeneration discharge, leaks, alarms and the unsoftened drinking-water branch. Record the results.
Talk to Sovereign Water
If you are comparing commercial water softeners, send the measured hardness, daily volume, peak and continuous flow, pressure readings, operating hours and continuity requirement. Talk to our team about your site.
Sources
- Thames Water, Hard water
- Drinking Water Inspectorate, Domestic water filters and softeners
- Drinking Water Inspectorate, Water Hardness / Hard Water
- UK legislation, The Water Supply (Water Fittings) Regulations 1999, Regulation 4
- UK legislation, The Water Supply (Water Fittings) Regulations 1999, Regulation 5
- UK legislation, Water Supply (Water Quality) Regulations 2016, Schedule 1
- Scottish Water, Water Byelaws
- Northern Ireland legislation, Water Supply (Water Fittings) Regulations 2009
- GOV.UK, Discharges to surface water and groundwater
- WRAS Approvals, Water softeners, approvals directory section 2450
- Sovereign Water, Regal 250 Water Softener
- Sovereign Water, Regal 500 Water Softener
- Sovereign Water, Regal 750 Water Softener
- Sovereign Water, Regal Twin 3672
- Sovereign Water, Commercial Softener RF1465SO1
