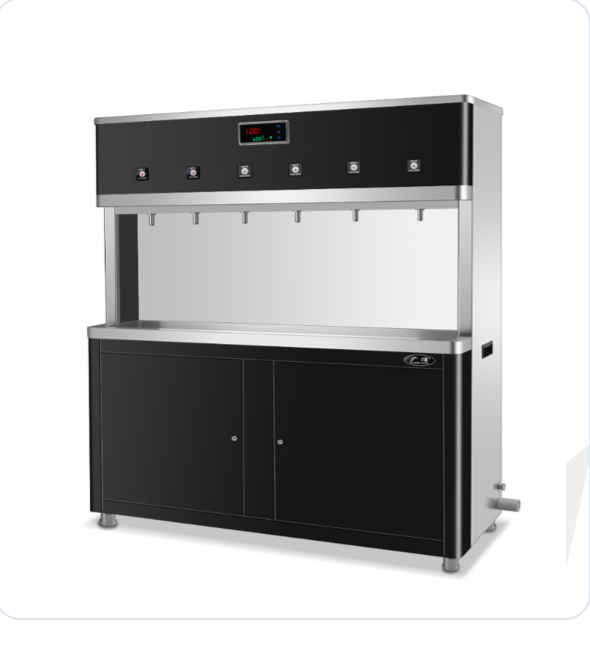

Monarch CB35 Water Station
A high-output stainless-steel chilled and hot water station with compressor cooling, in Touch (CB35T) and Manual-tap (CB35K) versions, built for canteens and busy sites serving 180 to 200 people.
About the Monarch CB35 Water Station
The Monarch CB35 is a high-output water station for sites where many people drink at the same time. A Danfoss R134a compressor chills water to 5-10 °C at up to 300 litres an hour from a 200 litre cold tank. A 27 litre hot tank gives 80 litres an hour. Six faucets let several people fill at once: four cold and two hot.
It comes in two versions. The CB35T has touch control and the CB35K has manual taps. The datasheet rates both for 180 to 200 people. It is part of Sovereign Water's own Monarch range, so we specify, supply, commission and service it ourselves. For the full range and the selector, see the Monarch range.
At a glance
- What it is
- A floor-standing six-tap chilled and hot water station
- Models
- CB35T with touch control, CB35K with manual taps
- Chilled
- Up to 300 L/h at 5-10 °C from a 200 L cold tank
- Hot
- 80 L/h from a 27 L hot tank
- Taps
- Six: four cold and two hot
- People served
- 180 to 200
- Power
- 500 W, 220-240 V, 50/60 Hz
- Size
- 1600 × 450 × 1520 mm (CB35T) or 1450 mm high (CB35K)
- Warranty
- 1 year, plus return and replacement cover
What it does.
- Up to 300 L/h of chilled water at 5-10 °C from a 200 L cold tank
- 80 L/h of hot water from a 27 L hot tank
- Six faucets: four chilled, two hot
- Danfoss R134a compressor cooling
- SS304 inner tank with SS201 stainless body
- Touch-panel (CB35T) or manual-tap (CB35K) control
Typical applications
Who the Monarch CB35 is for
- Canteens and dining areas, where many people drink in the same break.
- Busy sites serving 180 to 200 people from one station, instead of several small dispensers.
- Places that need hot water as well as cold, since two of the six taps give hot water.
- Buyers who want a choice of control: touch panel on the CB35T, manual taps on the CB35K.
- Buyers who want pre-filtration included, because the scope lists a three-stage set.
How the Monarch CB35 Water Station works
Mains water passes through a three-stage pre-filtration set, which the CB35 includes. It then fills a 200 litre cold tank and a 27 litre hot tank. A Danfoss compressor on R134a refrigerant chills the cold tank to 5-10 °C, and the datasheet rates the chilled output at up to 300 litres an hour.
The inner tank is SS304 stainless steel at 1.0 mm. The outer body is SS201 stainless steel at 0.6 mm. The hot tank gives 80 litres an hour. The datasheet does not give a hot water temperature, so we do not quote one.
Six faucets dispense the water: four cold and two hot. On the CB35T you use a touch panel. On the CB35K you use manual taps. Water supply pressure should be 0.07-0.5 MPa.
Which one should you choose?
The Monarch range is for volume. We choose the model from your headcount, your floor space and whether you need hot water. We settle this at survey.
Monarch CB35
You need chilled and hot water for 180 to 200 people, a pre-filtration set included, and the choice of touch or manual taps.
Monarch F6
You want a six-tap station and can choose chilled only at 300 L/h, or chilled and hot at 2.5 kW. The pre-filtration set is quoted separately.
Crown Spring Hydration Station
You want a bottle-fill station for hotels, poolsides and public spaces, with a branded panel, rather than a six-tap volume station.
Installation and servicing
The CB35T is 1600 × 450 × 1520 mm (width × depth × height) and the CB35K is 1450 mm high. Plan for a floor-standing unit with room around it for service. It needs a mains water inlet, a drain and a power supply of 220-240 V. The plug type is set as required.
The scope of supply lists the CB35 station, a three-stage pre-filtration set, inlet, drain and connection fittings, and commissioning and handover. The survey is chargeable and is credited back if you go ahead.
The datasheet gives a 1 year warranty with return and replacement cover. A Comprehensive Maintenance plan is optional, and Sovereign Water supplies, commissions and services the station.
Monarch CB35 Water Station questions answered
What is the Monarch CB35?
A floor-standing six-tap water station that gives chilled and hot water for 180 to 200 people. It has a compressor-chilled 200 litre cold tank and a 27 litre hot tank.
What is the difference between the CB35T and the CB35K?
The CB35T has touch control. The CB35K has manual taps. The cooling, tanks and capacity are the same. The CB35T is 1600 × 450 × 1520 mm, and the CB35K is 1450 mm high.
How much chilled water does it give?
Up to 300 litres an hour at 5-10 °C, from a 200 litre cold tank.
How much hot water does it give?
80 litres an hour from a 27 litre hot tank. The datasheet does not state a temperature.
How many taps does it have?
Six: four cold and two hot.
How many people is it for?
The datasheet rates it for 180 to 200 people.
How much power does it use?
500 W on 220-240 V at 50/60 Hz.
What is it made of?
The inner tank is SS304 stainless steel at 1.0 mm. The outer body is SS201 stainless steel at 0.6 mm.
Does it include water filtration?
Yes. The scope includes a three-stage pre-filtration set.
What water pressure does it need?
0.07-0.5 MPa at the inlet.
What warranty does it have?
One year, with return and replacement cover. You can add a Comprehensive Maintenance plan.
Do you supply, commission and service it?
Yes. We supply it, commission it and hand it over, and we service it. The survey is chargeable and is credited back if you go ahead.
