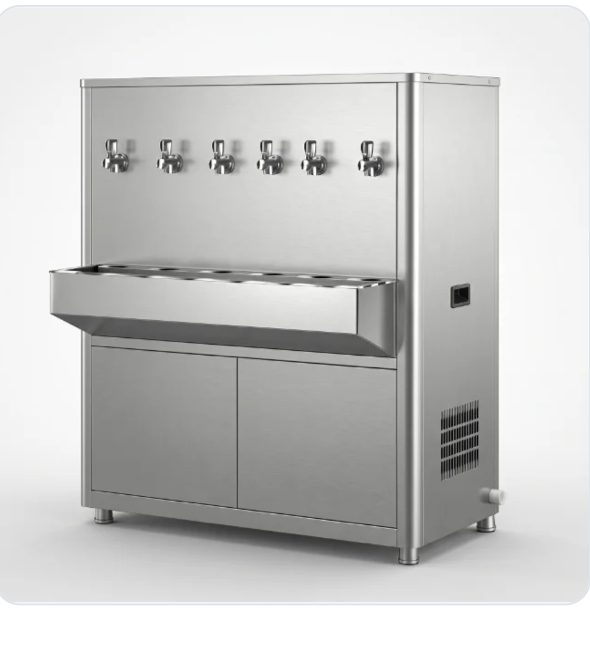

Monarch F6 Water Station
A six-tap floor-standing stainless-steel water station with hermetic compressor cooling, available as a 500 W chilled-only unit or a 2.5 kW chilled-and-hot unit, serving 180 to 200 people.
About the Monarch F6 Water Station
The Monarch F6 is a six-tap water station on a stainless steel cabinet, made for sites where a crowd needs water fast. A hermetic Danfu compressor on R134a refrigerant does the cooling. It comes in two versions in the same 1200 × 650 × 1300 mm cabinet. The 500 W version is chilled only. The 2.5 kW version gives chilled and hot water.
The datasheet rates both for 180 to 200 people. The F6 is part of Sovereign Water's own Monarch range, so we supply, commission and service it ourselves. For the whole range and the selector, see the Monarch range.
At a glance
- What it is
- A six-tap floor-standing stainless steel water station
- Versions
- 500 W chilled only, or 2.5 kW chilled and hot
- 500 W chilled
- 300 L/h at 5-10 °C from a 200 L cold tank
- 2.5 kW chilled and hot
- 80 L/h chilled and 90 L/h hot at 93-100 °C
- Taps
- Six knob faucets
- People served
- 180 to 200
- Power
- 220-240 V, 50 Hz
- Cabinet
- 1200 × 650 × 1300 mm
- Warranty
- 1 year, plus return and replacement cover
What it does.
- Chilled-only: 300 L/h at 5-10 °C from a 200 L cold tank
- Chilled & hot (2.5 kW): 80 L/h chilled plus 90 L/h hot at 93-100 °C
- Six knob faucets on one stainless station
- Hermetic Danfu compressor on R134a
- SS304 water tank with SS201 cabinet
- Same 1200 × 650 × 1300 mm cabinet for both versions
Typical applications
Who the Monarch F6 is for
- Sites that serve 180 to 200 people from one station and want six taps to stop queues.
- Sites that only need cold water. The 500 W chilled-only version gives 300 litres an hour at 5-10 °C.
- Sites that also need hot water. The 2.5 kW version adds 90 litres an hour at 93-100 °C.
- Buyers who prefer simple knob taps on a stainless steel cabinet.
- Buyers who want to size the water filtration separately, since the pre-filtration set is quoted on its own.
How the Monarch F6 Water Station works
Mains water fills the tanks inside the stainless steel cabinet. The tank is SS304 stainless steel at 1.0 mm and the cabinet is SS201 at 0.6 mm. A hermetic Danfu compressor on R134a chills the water. Inlet pressure should be 0.07-0.5 MPa.
In the 500 W chilled-only version, a 200 litre cold tank gives 300 litres an hour at 5-10 °C. In the 2.5 kW version, a 30 litre cold tank gives 80 litres an hour of chilled water, and a 27 litre hot tank gives 90 litres an hour at 93-100 °C.
Six knob faucets dispense the water. In the chilled-only version all six give cold water. In the chilled-and-hot version four give cold and two give hot.
Which one should you choose?
The F6 and the CB35 both serve 180 to 200 people. The choice comes down to the output you need, the taps you want and what is included. We settle this at survey.
Monarch F6
You want a six-tap knob station, and the option of chilled only at 300 L/h or chilled and hot with 93-100 °C water.
Monarch CB35
You want touch or manual taps, 300 L/h chilled and 80 L/h hot and a three-stage pre-filtration set included.
Crown Spring Hydration Station
You want a bottle-fill station for hotels, poolsides and public spaces, with a branded panel, rather than a six-tap volume station.
Installation and servicing
The cabinet is 1200 × 650 × 1300 mm (width × depth × height), and the carton is 1300 × 750 × 1400 mm. Plan for a floor-standing unit with a mains water inlet, a drain and a 220-240 V, 50 Hz power supply. The 500 W version needs far less power than the 2.5 kW version.
A pre-filtration set is available for the F6 and is quoted separately. It is not included in the base unit. We confirm the water supply and the layout at survey. The survey is chargeable and is credited back if you go ahead.
The datasheet gives a 1 year warranty with return and replacement cover. Sovereign Water supplies, commissions and services the station, and a Comprehensive Maintenance plan is optional.
Monarch F6 Water Station questions answered
What is the Monarch F6?
A six-tap floor-standing stainless steel water station for 180 to 200 people, in a chilled-only or a chilled-and-hot version.
What are the two versions?
A 500 W chilled-only unit, and a 2.5 kW unit with both chilled and hot water. They share the same cabinet.
How much chilled water does the 500 W version give?
300 litres an hour at 5-10 °C, from a 200 litre cold tank.
What does the 2.5 kW version give?
80 litres an hour of chilled water and 90 litres an hour of hot water at 93-100 °C, from a 30 litre cold tank and a 27 litre hot tank.
How many taps does it have?
Six knob faucets. With hot water, four are cold and two are hot.
How big is it?
The cabinet is 1200 × 650 × 1300 mm. The carton is 1300 × 750 × 1400 mm.
What is it made of?
The water tank is SS304 stainless steel at 1.0 mm. The cabinet is SS201 stainless steel at 0.6 mm.
What power supply does it need?
220-240 V at 50 Hz. The 500 W version draws 500 W and the hot version draws 2.5 kW.
Is a filter included?
No. A pre-filtration set is available and is quoted separately.
What is the difference from the CB35?
The CB35 has touch or manual taps and includes a three-stage pre-filtration set. The F6 has six knob taps and a chilled-only option.
What warranty does it have?
One year, with return and replacement cover.
Do you supply, commission and service it?
Yes. The survey is chargeable and is credited back if you go ahead.
